Graduated Suction Catheter
With Vacuum Control
All sizes available on
NHS Supply Chain
Clear and Smooth
connector with vacuum controller
Integrated Fingertip
for easy suction control
Graduated Tube
marked in centimetres

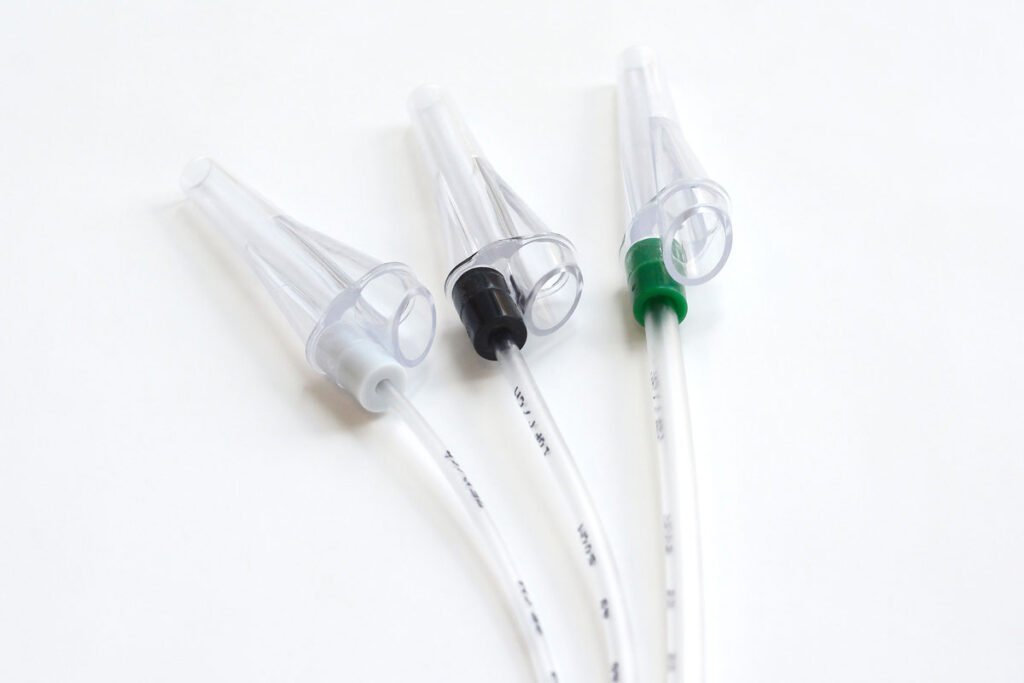

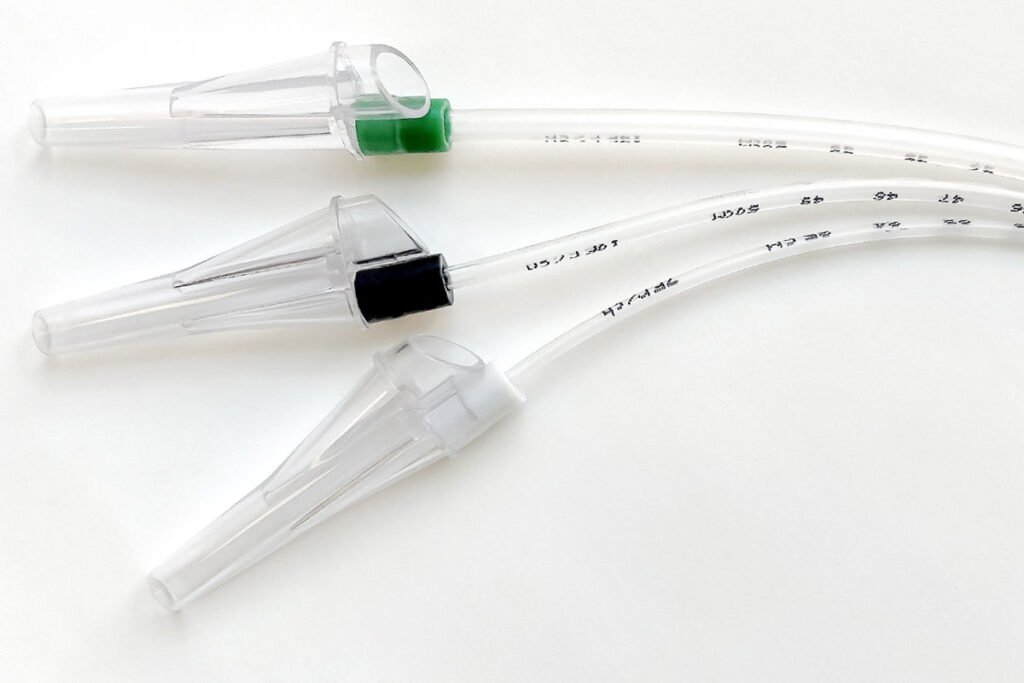

Colour-Coded Connector End
to universal standards for ease of size identification
DEHP-free, Latex-free
medical grade Polyvinyl Chloride (PVC)
Sterilised Individually Packed
available in singles through NHS Supply Chain
Two Murphy Offset Eyes
at the end of the tube
Atraumatic Rounded Tip
at the distal end of the catheter
Product Description
A graduated suction catheter is a sterile, single-use and flexible tube that has two murphy offset eyes at the distal end of the tube and a vacuum controller connector at the opposite end. Graduated suction catheters are available in a range of sizes and lengths. The catheters are used to remove sputum and other secretions from the respiratory tract to prevent blockages in the airways.
Colour coding connectors according to BS EN ISO 8836: 2020
| Ch / Fg | Colour Coded Connector End | Diameter | Double Offset Eye (side eyes) |
|---|---|---|---|
| 05 Ch | Grey | 1.67 mm | Yes |
| 06 Ch | Light Green | 2.0 mm | Yes |
| 07 Ch | Ivory | 2.3 mm | Yes |
| 08 Ch | Light Blue | 2.6 mm | Yes |
| 10 Ch | Black | 3.33 mm | Yes |
| 12 Ch | White | 4.0 mm | Yes |
| 14 Ch | Green | 4.66 mm | Yes |
Paediatric airway suctioning guidelines
| Age of child | Size of catheter (Fr) | Suction pressure (kPa) |
|---|---|---|
| Neonates (birth – 1 month) | 5-7 | 7-10 |
| Baby (1 month – 1 year) | 6-8 | 10-12 |
| Younger child (2 – 10 years) | 8-10 | 12-15 |
| Older child / adolescent (10 – 18 years) | 10-12 | 15-20 |
*Always cross reference sizes/pressures in accordance with your local clinical policy guidelines.
Indications
Suction catheters are sterile, single use devices intended for removal of secretions from the respiratory tract (nasopharyngeal space, trachea and bronchial carina) in order to keep the airways open. The device is intended for short-term use.
Graduated Open Suction Catheter
RHC Code | Size (Fr) | Length (cm) | NHS Code | Colour | Pack Qty |
|---|---|---|---|---|---|
| 310305 | 5 | 35 cm | FPA85020 | Grey | 100 |
| 310306 | 6 | 35 cm | FPA85021 | Light Green | 100 |
| 310307 | 7 | 35 cm | FSQ85305 | Ivory | 100 |
| 310308 | 8 | 35 cm | FPA85028 | Blue | 100 |
| 310310 | 10 | 35 cm | FPA85030 | Black | 100 |
| 310312 | 12 | 35 cm | FPA85026 | White | 100 |
| 310314 | 14 | 35 cm | FPA85027 | Green | 100 |
| 310506 | 6 | 50 cm | FPA85019 | Light Green | 100 |
| 310507 | 7 | 50 cm | FPA85024 | Ivory | 100 |
| 310508 | 8 | 50 cm | FPA85025 | Blue | 100 |
| 310510 | 10 | 50 cm | FPA85022 | Black | 100 |
| 310512 | 12 | 50 cm | FPA85023 | White | 100 |
| 310514 | 14 | 50 cm | FPA85032 | Green | 100 |
| 310607 | 7 | 60 cm | FPA85031 | Ivory | 100 |
| 310608 | 8 | 60 cm | FPA85033 | Blue | 100 |
| 310610 | 10 | 60 cm | FSQ85306 | Black | 100 |
| 310612 | 12 | 60 cm | FPA85029 | White | 100 |
| 310614 | 14 | 60 cm | FSQ85304 | Green | 100 |
